Reactive Powder Concrete
Reactive Powder Concrete

Concrete is a versatile and critical material for the construction of infrastructure facilities throughout the world. A new developing material known as Reactive Powder Concrete (RPC) is available that differs significantly from traditional concrete. RPC has no large aggregates, and contains small steel fibers that provide additional strength and in some cases can replace traditional steel reinforcement. Reactive Powder Concrete (RPC) will allow the concrete industry to optimize material use, generate economic benefits, and build structures that are strong and durable. A comparison of the physical, mechanical and durability of RPC and high performance concrete (HPC) shows that RPC possesses better(both Compressive and Flexural strength) and lower permeability compared to HPC. HPC leads the way to the achievement of maximum compressive strength of the order of say 120-150 MPa or so. However, at such a level of strength, the coarse aggregate becomes the weakest link in concrete. In order to increase the compressive strength of concrete even further, the only way is to remove coarse aggregate. This philosophy has been employed in what is today as Reactive Powder Concrete.

INTRODUCTION

RPC with the trade name “DUCTAL” was developed in France by researchers Mr. Richard and Mr. Cheyrezy in the early 1990s at Bouygues, laboratory in France. The world’s first Reactive Powder Concrete structure, the Sherbrook Bridge in Canada, was erected in July 1997. Reactive Powder Concrete (RPC) is an ultra-high-strength and high ductility cementation composite with advanced mechanical and physical properties. It consists of a special concrete where the microstructure is optimized by precise gradation of all particles in the mix to yield maximum density. It uses extensively the pozzolanic properties of highly refined silica fumes and optimization of the Portland cement chemistry to produce the highest strength hydrates.

This new material demonstrates greatly improved strength and durability characteristics compared with traditional or even high performance concrete. The improved properties the homogeneity of the concrete by eliminating large aggregates, increasing compactness of the mixtures by optimizing packing density of fine particles, and using fine steel fibre’s to provide ductility.

The HPC used for the nuclear waste containment structures of Indian Concrete Power Plants are having moderate compressive strength, moderate E value, uniform density, good workability, and high durability. There is a need to evaluate RPC regarding its strength and durability to suggest its use for nuclear waste containment structures.

COMPOSITION OF REACTIVE POWDER CONCRETE

RPC is composed of very fine powders (cement, sand, quartz powder and silica fume), steel fibres (optional) and super plasticizer. The super plasticizer used at its optimal dosage, decreases the water to cement ratio (w/c) while improving the workability of the concrete. A very dense matrix is achieved by optimizing the granular packing of the dry fine powders. This compactness gives RPC ultra-high strength and durability. Reactive Powder Concretes have compressive strengths ranging from 200 MPa to 800 MPa.

PRINCIPLES FOR DEVELOPING RPC ARE AS FOLLOWS

  • Enhancement of homogeneity by elimination of coarse aggregates.
  • Enhancement of compacted density by optimization of the granular mixture.
  • Enhancement of the microstructure by Post-set heat-treatment.
  • Enhancement of ductility by addition of small-sized steel fibres.
  • Application of pressure before and during setting to improve compaction.
  • The optimal usage of super plasticizer to reduce w/c and improve workability.

Properties of RPC enhancing its homogeneity and strength

PROPERTY OF RPCDESCRIPTIONRECOMMENDED VALUESTYPES OF FAILURE ELIMINATED
Reduction inaggregate sizeCoarse aggregates are replaced by fine sand, with a reduction in the size of the coarsest aggregate by a factor of about 50.Maximum size of fine sand is 600 µmMechanical, Chemical &Thermo-mechanical
Enhanced mechanical propertiesImproved mechanical properties of the paste by the addition of silica fumeYoung’s modulus values in 50– 75 GPa rangeDisturbance of the mechanical stress field.
Reduction in aggregate to matrix ratioLimitation of sand contentVolume of the paste is at least 20% greater than the voids index of non-compacted sand.By any external source (e.g., formwork).

Table – Describes the different ingredients of RPC and their selection parameters

The mixture design of RPC primarily involves the creation of a dense granular skeleton. Optimization of the granular mixture can be achieved either by the use of packing models or by particle size distribution software, such as LISA. For RPC mixture design an experimental method has been preferred. The major parameter that describes the quality of the mixture is its water demand (quality of water for minimum flow of concrete). In fact the voids index of the mixture is related to the sum of water demand and entrapped air.

Selection Parameters for RPC components

SL NOCOMPONENTSSELECTION PARAMETERSFUNCTIONPARTICLE SIZETYPES
  1SandGood harness readily available and low cost.Give strength, Aggregate150 µm to 600 µmNatural, Crushed
  2CementC3S : 60%; C2S : 22%;C3A : 3.8%;C4AF: 7.4%.(optimum)Binding material, Production of primary hydrates1 µm to 100 µmOPC, Mediumfineness
  3Quartz Powder  FinenessMax. reactivity during heat-treating5 µm to 25 µmCrystalline
    4Silica fumeVery less quantity of impuritiesFilling the voids, Enhance rheology, Production of secondary hydrates0.1 µ to 1 µmProcured from Ferrosilicon industry(highly refined)
  5Steel fibersGood aspect ratioImprove ductilityL : 13 –       25 mm Ø : 0.15 – 0.2 mmStraight
  6Super plasticizerLess retarding characteristicReduce w/c_Polyacrylate based

After selecting a mixture design according to minimum water demand, optimum water content is analysed using the parameter relative density (d0/dS). Here d0 and dS represent the density of the concrete and the compacted density of the mixture (no water or air) respectively. Relative density indicates the level of packing of the concrete and its maximum value is one. For RPC, the mixture design should be such that the packing density is maximized.

Heat curing is performed by simply heating (normally at 90°C) the concrete at normal pressure after it has set properly. This considerably accelerates the pozzolanic reaction, while modifying the microstructure of the hydrates that have formed. Pre-setting pressurization has also been suggested as a means of achieving high strength.

The high strength of RPC makes it highly brittle. Steel fibres are generally added to RPC to enhance its ductility. Straight steel fibres used typically are about 13 mm long, with a diameter of 0.15 mm. The fibres are introduced into the mixture at a ratio of between 1.5 and 3% by volume. The cost-effective optimal dosage is equivalent to a ratio of 2% by volume.

MECHANICAL PERFORMANCES AND DURABILITY OF RPC

The RPC family includes two types of concrete, designated RPC 200 and RPC 800, which offer interesting implicational possibilities in different areas. Mechanical properties for the two types of RPC are given in Table. The high flexural strength of RPC is due to the addition of steel fibres.

Table – Comparison of RPC 200 and RPC 800

PROPERTIESRPC 200RPC 800
Pre-setting pressurizationNone50 MPa
Heat-treating20 to 90°C250 to 400°C
Compressive strength (using quartz sand)170 to 230 MPa490 to 680 MPa
Compressive strength (using steel aggregate)650 to 810 MPa
Flexural strength30 to 60 MPa45 to 141 MPa

Table shows typical mechanical properties of RPC compared to a conventional HPC of compressive strength 80 MPa. As fracture toughness, which is a measure of energy absorbed per unit volume of material to fracture, is higher for RPC, it exhibits high ductility. Apart from their exceptional mechanical properties, RPCs have an ultra-dense microstructure, giving advantageous waterproofing and durability characteristics. These materials can therefore be used for industrial and nuclear waste storage facilities.

Table – Durability of RPC Compared to HPC

Abrasive Wear2.5 times lower
Water Absorption7 times lower
Rate of Corrosion8 times lower
Chloride ions diffusion2 times lower

THE BENEFITS OF RPC

The benefits of Reactive Powder Concrete are as follows:-

  1. RPC is a better alternative to High Performance Concrete and has potential to structurally compete with steel.
  2. Its superior strength combined with higher shear capacity results in significant dead load reduction and limitless structural member shape.
  3. With its ductile tensile failure mechanism, RPC can be used to resist all but direct primarily tensile stresses. This eliminates the need for supplemental shear and other auxiliary reinforcing steel.
  4. RPC improves seismic performance by reducing inertia loads with lighter members, allowing larger deflections with reduced cross sections, and providing higher energy absorption.
  5. Its low and non-interconnected porosity diminishes mass transfer making penetration of liquid/gas or radioactive elements nearly non- existent. Cesium diffusion is non-existent and Tritium diffusion is 4.5 times lower than conventional containment materials.

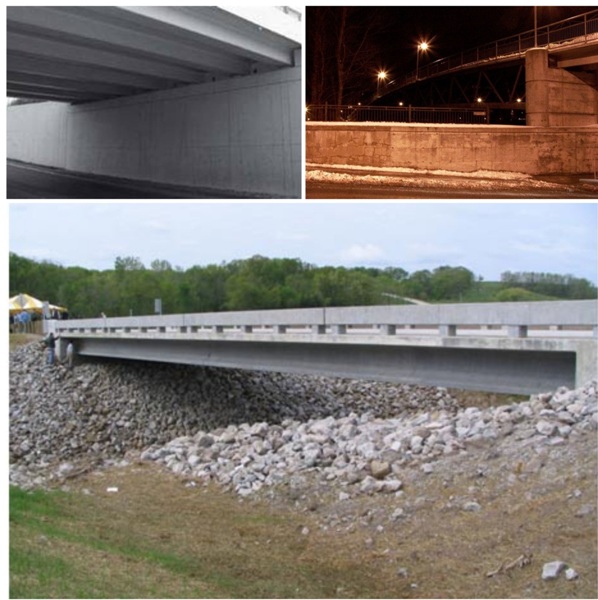

Applications of Reactive Powder Concrete

LIMITATIONS OF RPC

In a typical RPC mixture design, the least costly components of conventional concrete are basically eliminated or replaced by more expensive elements.

  1. In terms of size scale, the fine sand used in RPC becomes equivalent to the coarse aggregate of conventional concrete.
  2. The Portland cement plays the role of the fine aggregate and the silica fume that of the cement.
  3. The mineral component optimization alone results (5 to 10 times higher than HPC).
  4. RPC should be used in areas where weight savings can be realized and where some of the remarkable characteristics of the material can be fully utilized.
  5. Owing to its high members where durability issues are at stake (for example, in marine condition), since RPC is in this infancy.

CONCLUSION

RPC is an emerging technology that lends a new dimension to the term “High Performance Concrete”. It has immense potential in construction due to superior mechanical and durability properties than conventional High Performance Concrete, and could even replace steel in some applications. The development of RPC is based on the application of some basic principles to achieve homogeneity, very good workability, high compaction, improved microstructure and high ductility. RPC has an ultra-dense microstructure, giving advantageous waterproofing and durability characteristics.
