Compaction Equipment; Pneumatic Tyred Rollers

6245
Compaction Equipment-
Pneumatic Tyred Rollers

Developments in road and highway continue to increase the demand for paved roads. To meet this demand, the soil compaction equipment is required to work on different types of terrains and within a very tight schedule. The vital features required in compaction equipment are higher levels of productivity with fewer numbers of passes and the right frequency settings. Operators must be able to execute their work in a manner that will provide for maximum compaction with suitable roller equipment. The pneumatic tyred roller is one such preferred compaction equipment It is used on roads and highways to achieve density and smoothness. The use of a pneumatic tyred roller, particularly in the construction of roads is necessary to avoid timely road damages and potholes. These types of compaction equipment are suitable for soft base materials or layers of loose soil, grained sands cohesive soils and very effective for bituminous layers where the design mix has a high content of fines. They can be used on both soil and asphalt which benefit a road building contractor to have only one compactor for both stages of construction – base and asphalt.

Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre’s elasticity, the material displacement will be produced in all directions, forming even dense surfaces without cracks, which can prolong the service life of the road. Manufacturers of pneumatic tyred rollers have been focused on the advancement of compaction technologies for solid paving applications. Furthermore, manufacturers are focusing on introducing specific application requirements. The new machines are built along the modular design with standardised components and subsystems. Manufacturers have been keen on the upgradation of the f ballasting range, traction control, intuitive control, tyre pressure adjustment etc. Discussed below are different types of models used in projects in India.

Pneumatic tyred rollers with the hydrodynamic propulsion system

Amann AP 240

The latest pneumatic tyred roller models come with a hydrodynamic propulsion system. Hydrostatic propulsion systems are the best fit on job sites where extra traction and propulsion are required. These rollers use pump hydro-motors that control propulsion energy. Traction force can be adjusted electronically, which leads to fuel efficiency. The hydrostatic models enable particularly smooth starts and stops. These rollers provide the kneading and sealing effect for job sites increasing productivity on tough terrain. The tyred rollers perform on both aggregates and asphalt, offering flexibility with air pressure adjustment features. The latest models can be used on several different projects such as subdivision streets, large parking lots, and driveways. Operators would find the machine easy to control as it is very user-friendly and easy to operate, it comes with a spacious cab. Everything can be easily managed by the operator through a control operation station. Pneumatic rollers have become more popular with stiffer mixes since they can help you achieve compaction density. These types of rollers consist of tyres that provide better static penetration into the materials. The weight of the machines and the air pressure of the tires can be adjusted to meet the specific pressure desired on a particular job.

Pneumatic tyred rollers with better compaction width

Dynapac CP1200W

The new pneumatic tyred roller is available with compaction width 2370 mm and a maximum operation mass of up to 30 000 kgs. It is ideally suited for a wide range of high-quality applications. The new models are built with a hydraulic transmission system, which simplifies steering and on-off operations. A single pump, single motor transmission system with steady speed adjustment poses no impact on road material. An optimised engine reduces fuel consumption and emissions. It is easy to change engine liquids and hydraulic fluid without risk of spillage. To reduce noise, the cooling fans are thermostatically controlled, and the entire machine produces a low level of ambient noise. The models are equipped with a spacious platform with operator-friendly controls, plus a rotating and sideways sliding seat and steering assembly. Available as an option is a comfortable cab that provides outstanding all-round visibility with the added benefit of either air conditioning or Automatic Climate Control.

Pneumatic tyred roller to achieve uniform material density

Volvo Pt220C Pneumatic Tyre Roller

 The models now feature the perfect kneading effect required to achieve uniform material density. The four wide front and rear tires overlap by 50mm to provide full-width coverage, while the isostatic levelling cylinders secure consistent contact with the material for excellent surface sealing. This machine has overlapping tyres for complete coverage. The other features of the model includes, hydrostatic drive, ISO-static suspension, rust-proof water system, sealed ballasting compartment, better amplitude and centrifugal force range. It has dual operator seats with a sliding console which provides unobstructed visibility in all directions. Isostatic levelling cylinders keep the front tyres in even contact with the material surface at all times. Irregularities in the material are removed and excellent surface sealing is achieved. The pressurised, rust-proof LDPE water system features an adjustable flow rate which can be used by the operator as needed to help eliminate material build-up on the tire surface, maintain soil surface temperature and reduce water refills. The water storage tank level indicator is clearly in view, allowing the operator to easily monitor the water level. Operator comfort is kept to a maximum with features including a sliding console, outstanding visibility, suspension on both seats.

Pneumatic tyred rollers with easy ballasting

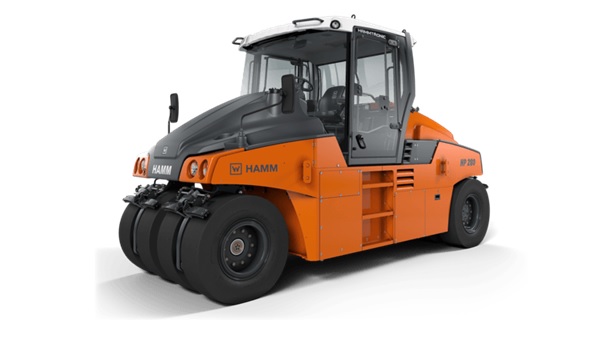

HAMM HP 280i

Newer models come equipped with a ballasting concept for fast, optimum equipping of the machine. Ballast can be added or removed to ensure the proper static weight. Space for ballast materials is built into the frame as well as from underneath of the machine, making the adjustment convenient and consistent. Ballast materials include concrete and steel. The ballast spaces between the wheelsets allow the weight of the machine to be adjusted in no time using pre-made ballast bodies. The different variants allow for a high degree of flexibility for compaction force and depth. With its powerful disc brakes, the machine models can be rapidly and safely brought from full speed to a standstill, even when carrying the maximum ballast load. With their well-conceived design, a modern, spacious panoramic cabin and many creative refinements, the new series pneumatic tyred rollers provide the best possible overview and maximum user-friendliness. Whether with a cabin or open operator’s platform that has an outstanding view of the machine and construction site at all times. A special feature of the compact pneumatic tyred rollers is their asymmetric frame. It ensures an unobstructed view of the outer edges of the front and rear wheels. With optimum safety in mind, the brake pedal is integrally arranged on the seat-operating unit in such a way that the driver can find it in the same place in every working position and stop the roller immediately.

Pneumatic tyred rollers with hydrostatic system

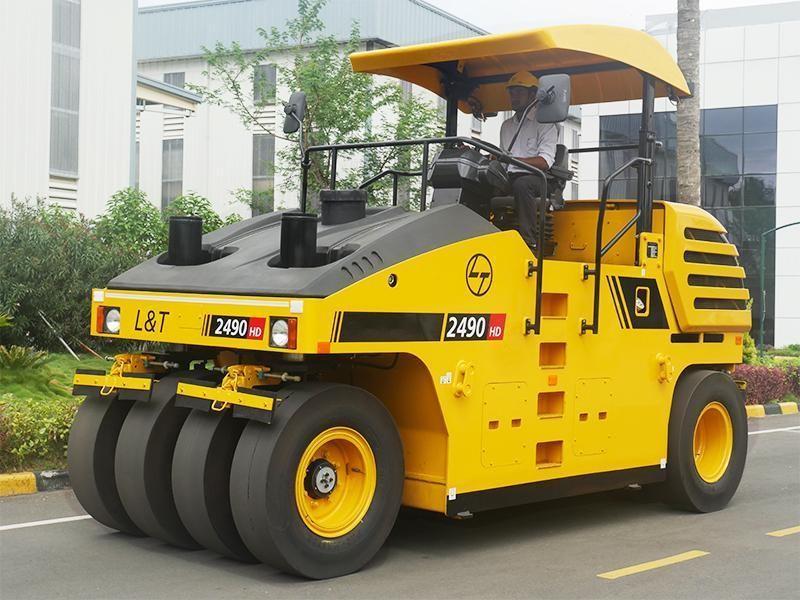

L&T 2490HD Pneumatic Tyred Roller

Hydrostatic drive in newer models enables smooth machine operation. Drive motors directly drive the tyres, reducing transmission losses and allowing precise control. Hydraulic motors are mounted directly to the rear wheel assembly, driven by a variable displacement hydraulic pump. Hydraulic power steering provides precise steering to maximise surface coverage with uniform tire coverage. The machine is used for sealing of the topmost bituminous layer. The sealing ensures that no water seepage takes place on the road. The drive quality also improves with the use of the Pneumatic Tyred Roller. The ballast can be achieved by using concrete debris or steel scrap. The machine is built with a 4-front and 4-rear combination. The front wheels are directly driven by hydraulic motors. The steering system is optimised to ensure that the machine steering leaves no scuffing on the surface. A significant feature of the machines is the smooth start-stop procedure when changing driving direction. The wide base tyres, air-on-the-run option and backup sprinkler further enhance the resulting quality. The braking system has two separate circuits which can maintain full braking capacity.

Conclusion

Discussed above are different types of pneumatic model operation efficiency are discussed available in India. In next series of compaction articles will focus on newer and upgraded models.
